Gas-insulated switchgear (GIS) is essential for maintaining stable and efficient power grids in the energy industry. These systems use gases like SF6—or eco-friendly alternatives—to insulate high-voltage components, offering a compact, space-saving design without compromising safety or reliability. But even the most advanced GIS technology faces risks: gas leaks. When insulation degrades, it can trigger arc faults, equipment failures, or even explosions, endangering personnel and disrupting operations. Worse, SF6 leaks carry an environmental cost—this potent greenhouse gas has a global warming potential thousands of times higher than CO2. That's why precise leak detection isn't just a technical necessity—it's a safeguard for safety, sustainability, and the future of energy infrastructure.
Gas-insulated switchgear (GIS) is the cornerstone of modern power infrastructure—a high-voltage electrical device that uses pressurized inert gas to insulate components. Unlike traditional air-insulated systems, GIS encases critical parts like circuit breakers and busbars in a sealed environment, slashing space requirements while boosting reliability. Since its debut in the 1960s, GIS technology has evolved dramatically, driven by advances in materials science and a growing emphasis on compact, urban-friendly energy solutions. Gases like sulphur hexafluoride (SF6) remain key to its performance, though eco-friendly alternatives are gaining traction.
The global shift toward renewable energy and urban electrification has thrust GIS into the spotlight. Utilities increasingly favour these systems because they can fit into tight spaces without sacrificing power capacity.
The critical role of gas-insulated switchgear
At its core, GIS keeps the lights on—literally. It controls and isolates electrical currents in high-voltage networks, preventing cascading failures during faults. But its true genius lies in its design. GIS devices shrink substation footprints by replacing bulky air insulation with compact gas-filled chambers.
The advantages go beyond size. Sealed compartments filled with inert gases like SF6 eliminate oxygen, drastically reducing fire and explosion risks—a critical safety upgrade over conventional systems. This design also minimizes maintenance needs, as components stay protected from dust and humidity. GIS is the backbone of renewable energy integration, handling extreme voltages with precision from offshore wind farms to solar plants. Its reliability ensures that even in harsh environments, power flows smoothly, proving that sometimes, the best solutions come in compact packages.
Understanding gas insulation technology
Gas-insulated switchgear (GIS) relies on pressurized gases to prevent electrical arcs and ensure safe power transmission. Unlike air or oil insulation, gases like SF6 create a dense barrier that quenches sparks efficiently, even in compact spaces. This makes GIS a perfect solution for urban substations with limited space.
SF6 has long been the go-to gas due to its unmatched insulation strength and stability. However, its environmental impact has spurred interest in alternatives. These newer gases aim to balance performance with lower global warming, though they're not yet viable for all applications.
Regulatory bodies increasingly mandate SF6 phase-outs in medium-voltage systems, pushing manufacturers to innovate while maintaining reliability in high-voltage grids where alternatives lag.
Risks and consequences of gas leakage
Technical risks
Leaks compromise insulation, allowing arcs to form. Uncontrolled arcing can melt components, trigger short circuits, and cause cascading grid failures. Even minor leaks force shutdowns for repairs, disrupting the power supply and inflating maintenance costs.
Safety hazards
Escaped gas can ignite, especially near electrical faults, risking explosions. Workers face burns or toxic exposure, while equipment damage escalates replacement expenses. In extreme cases, fires can spread to adjacent infrastructure.
Environmental impact
SF6's global warming potential is more than three times higher than that of CO2. Strict regulations aim to curb its use, but high-voltage systems still depend on it, making leak prevention critical for compliance and climate protection.
Leak detection and prevention
Helium leak detection is the gold standard. Its tiny molecules pinpoint leaks, far surpassing traditional methods. Helium's inert nature ensures safety during testing, even in high-pressure applications.

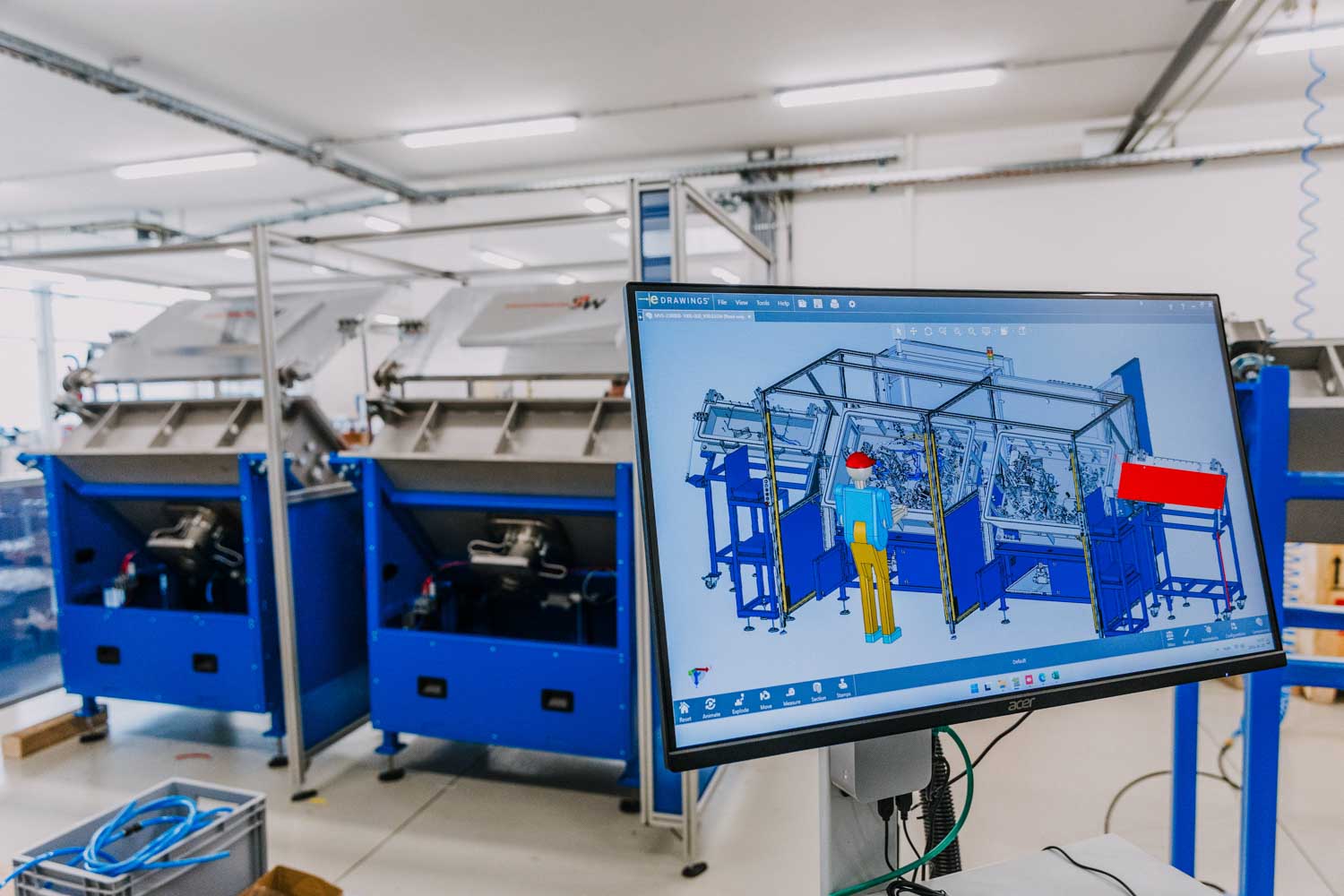

Companies like MVS Technologies specialize in custom helium-testing systems, offering solutions up to 550 bar for automotive, aviation, and energy sectors. Our automated setups integrate with manufacturing execution systems (MES), ensuring real-time data traceability. By tailoring designs to each client's needs—from prototype testing to full-scale production—MVS ensures gas-insulated switchgear meets rigorous safety and environmental standards, future-proofing critical infrastructure.
Gas-insulated switchgear systems demand rigorous leak testing to prevent safety hazards, operational failures, and environmental harm—especially when using potent greenhouse gases like SF6. Partnering with experts like MVS Technologies ensures precise helium-based detection, tailored solutions for complex requirements, and long-term support to maintain system integrity.
To safeguard infrastructure while aligning with evolving industry and environmental standards, prioritise regular inspections, adopt advanced testing methods, and invest in customized leak-detection strategies!
